IN DEVELOPMENT
TUC TW Series
Transparent Wall Platform
Beyond windows. A reinforced transparent chamber wall.
TW is a new soft-chamber platform built around a large-area reinforced transparent wall, 1.5 ATA operation and fully inflatable support.
- Large-area transparent wall
- 1.5 ATA platform
- Fully inflatable support
From windows to walls.
Conventional soft-chamber designs typically use separate viewing windows. TW takes a different approach: the reinforced transparent material becomes a much larger part of the chamber wall itself.
Conventional approach
Separate viewing windows
TW approach
Large-area reinforced transparent wall
What changes.
A wider field of view
A larger transparent area brings in more light and gives the user a wider view outside.
Built around 1.5 ATA
The current TW platform is designed for 1.5 ATA operation.
Transparent, with structure
Fine integrated reinforcement supports the transparent wall while preserving light transmission and visibility.
Fully inflatable support
The external support structure is inflatable, making the chamber easier to pack, move and store.
Functional reinforcement + visual identity
Structure can become part of the design.
The reinforcement visible through the transparent wall can use different color combinations, turning a structural element into part of the chamber's visual identity.
This also creates new options for partner-specific color directions.
More light. A more open feel.
The larger transparent area brings in more light and keeps more of the outside environment in view.

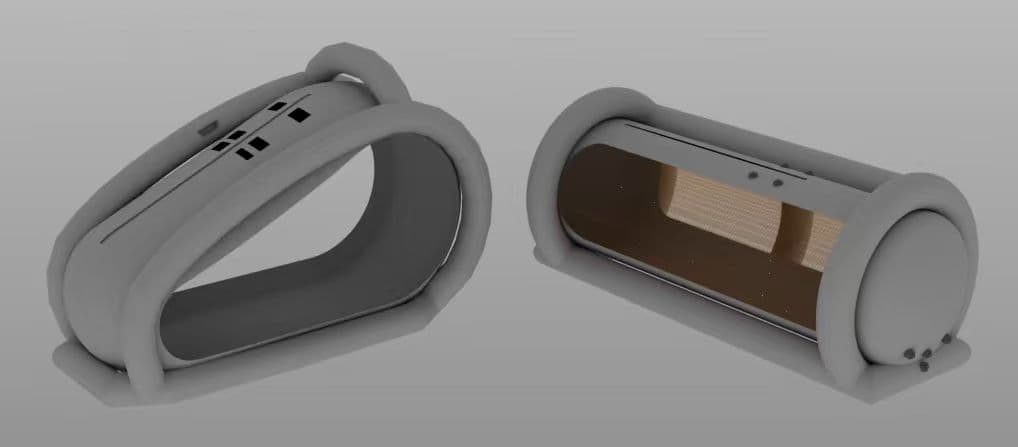

Two forms. One platform.

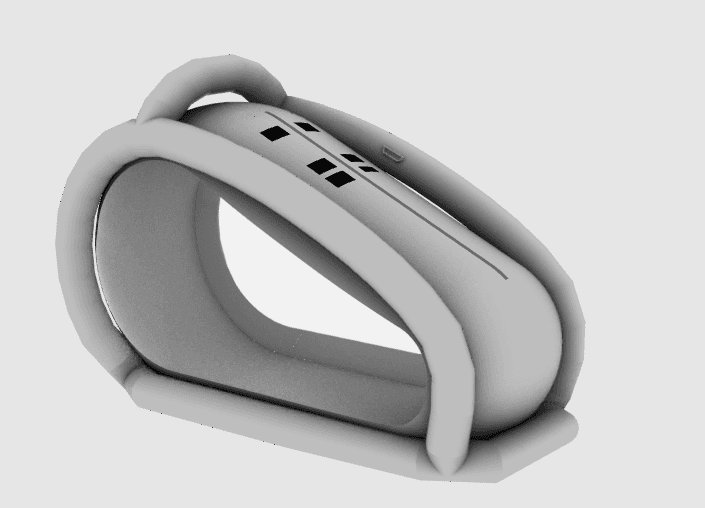

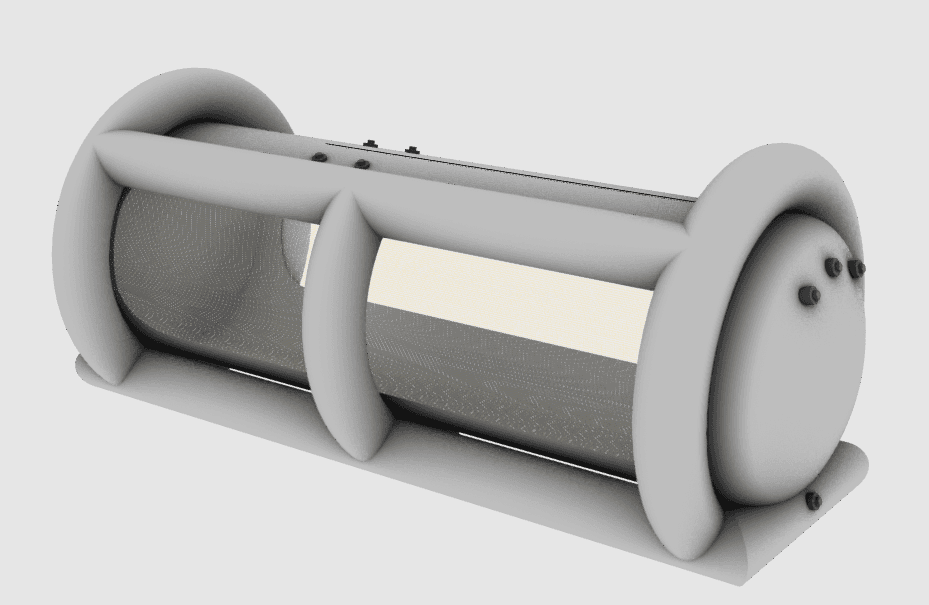

We are developing the TW platform in more than one chamber form. These renders show the current design direction; final production details may change.
Where development stands.
1.5 ATA
The current TW platform is built around 1.5 ATA operation.
Higher pressure
Development and testing are continuing for higher-pressure versions.
Partner projects
Higher-pressure and partner-specific requirements can be discussed as part of development.
Interested in the TW Series?
If you distribute, brand or develop hyperbaric systems, talk to us about early previews and project requirements.
