10L Oxygen & Pressure System

One control platform. Different enclosure options for different projects.

Start with the machine layout that fits your product direction, then review the shared system capabilities underneath.

Choose your 10L system format

Selected format

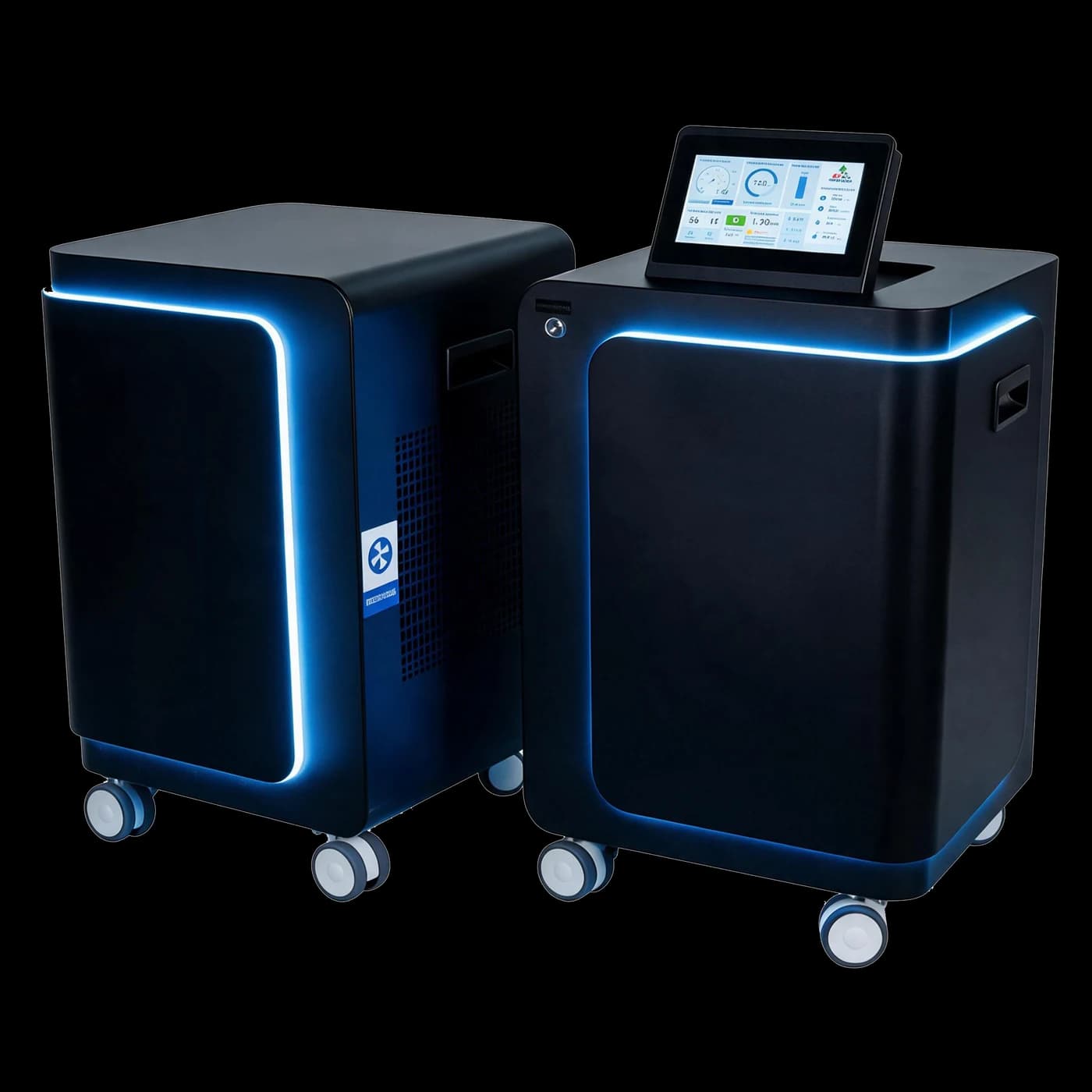

Split — Cabinet A

5 views

About this format

A two-module format with a larger cabinet profile, designed for easier movement and service access.

Size: 43 × 41 × 62 cm each
Weight: Approx. 77.5 kg total

Why choose this format

Easier to move in two modules
Easier component access for service
Lower concentrated heat load

Inside control available

Display size, interface presentation and branding can be configured for qualifying partner projects.

Built Around Your Product and Business

The enclosure is only one part of the project. Exterior design, accessories, UI and connected functions can be developed around the partner product strategy.

Cabinet & Exterior

Cabinet shape, exterior details and presentation can be developed for qualifying OEM and private-label volumes.

Accessories & System Matching

Internal control, cooling, chamber connections and supporting equipment can be matched to the confirmed project.

UI & Control

Display size, interface presentation, branding and operating hierarchy can be configured for partner projects.

Connected Control & Safety Development

Wi-Fi / BLE control, device-status visibility, fault reporting and project-specific connected functions can be developed while critical emergency-stop control remains hardware based.

From One Unit to a Managed Network

Single Unit

One chamber system with local inside, outside and mobile-ready control options.

Small Commercial

Several systems can be developed around local status visibility for small commercial sites, clubs, studios and recovery spaces.

Distributor Network

Partner projects can extend toward fleet visibility, fault reporting and service support across installed systems.

Connected functions are developed and confirmed by project scope. Critical emergency-stop operation remains hardware controlled.

Core System Capabilities

The enclosure can change. The core oxygen, airflow, pressure and control functions remain the common system platform.

10 L/min Oxygen

Rated oxygen delivery matched to the confirmed chamber configuration.

Continuous Fresh-Air Input

Fresh air continues to enter the chamber throughout the session.

Pressure Management

Chamber airflow and pressure are managed as part of the matched system.

Multi-Compressor Air Management

Multiple compressors support airflow demand during pressurization and operation.

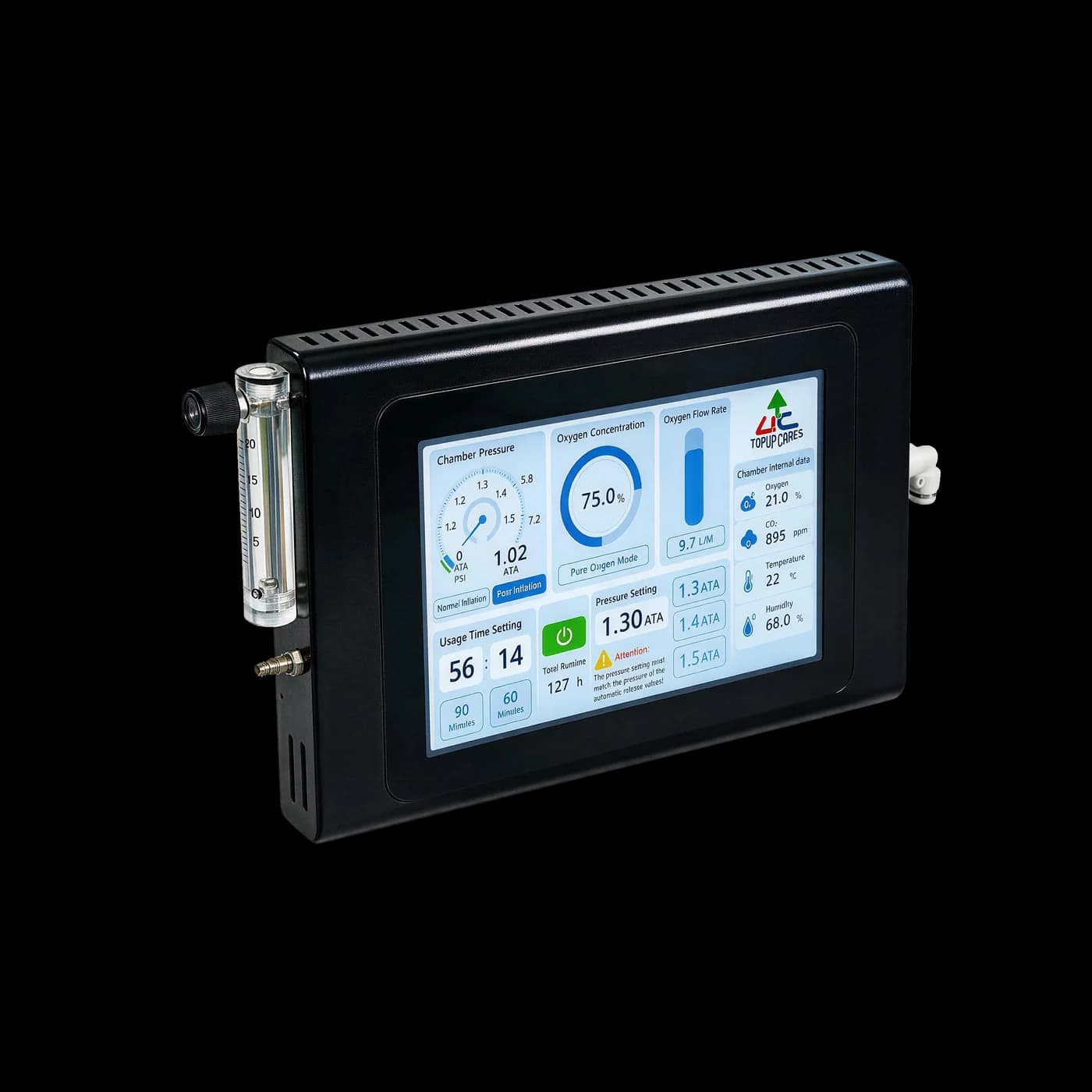

Inside & Outside Control

Operate and monitor the same core system from either side of the chamber.

Live O₂ / CO₂ Monitoring

Live chamber data can include oxygen and carbon-dioxide readings.

Selected 2.0 ATA soft chamber compatibility

The 10L platform can support selected 2.0 ATA soft chamber projects where model-level compatibility is confirmed.

Optional Air-Conditioning Integration

The Air-Conditioning Unit remains optional equipment and is confirmed for each chamber project. Prepared 12V auxiliary power connection for compatible air-conditioning equipment.

View optional equipment

Discuss Your Project

Tell us which enclosure direction you prefer and how the system should fit your chamber, brand and installation.

Discuss Your Project
